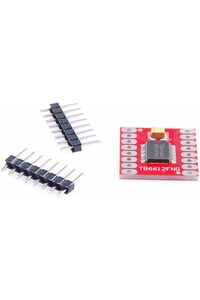

Generic WANGCL Dual Motor Driver Module 1A TB6612FNG for Arduino Microcontroller

Product description

The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).

Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.

The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC.

The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

All pins of the TB6612FNG are broken out to two 0.1 inch pitch headers.

Specification:Dimension: 0.8 x 0.8 inchPower supply voltage: VM = 15V max, VDC = 2.7-5.5VOutput current: Iout = 1.2A (average) / 3.2A (peak)Package included:1x Dual motor driver module
