Generic 1Pcs DIY Four-Spray Humidifier Module Kit Versatile Mist Maker with Humidifier Control Board & Atomi

Product description

Mode: 1.Continuous Spray Mode: Continuous spray mode for 4 nozzles with 4 LED lights constantly on

2.Dynamic Spray Mode: Each of the 4 nozzles sprays for 3 seconds with corresponding lights on

cycles in sequence.

3.Indirect Spray Mode: Press the S2 switch for the second time for nozzle 1 to spray with corresponding light on

press the S2 switch for the third time for nozzle 1 and 2 to spray with corresponding lights on

proceeds in sequence.

4.After 2 hours of spray in the above modes, it automatically shuts down for protection.

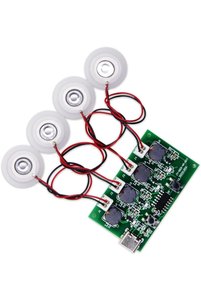

Atomizer Drive Board Parameters: Rated Voltage: DC 5V Rated Current: 300mA Power: 2.5-3W Atmospheric Lighting: White Light Atomization Frequency: 108KHZ2KHZ Microporous Atomizing Sheet Parameters: Diameter: 16mm Driving Voltage: DC3V-12V Rated Power: 1.5W Atomization Amount: 25-660M/H Power Range: 0.6W-3W Resonant Frequency: 103-113KHZ5 Outer Diameter Of Silicone Sleeve: 20mm Wire Length: 100mm-300mm Wire Terminal: 2.0 Package Contents: 1 x Control Board Module 4 x Atomizer
