Generic 32 Channel Motion Sensor LED Stair Light Controller, Intelligent Automatic Cascaded Staircase Ladder

Product description

How to Use Connection method: Insert the LED light bar into the controller port of the corresponding staircase step in sequence.

For example: the first step of the lamps and lanterns positive pole inserted in the orange terminal number 1, negative pole inserted in the green terminal number 1

the second step of the lamps and lanterns positive pole inserted in the orange terminal number 2, negative pole inserted in the green terminal number 2

the third step of the lamps and lanterns positive pole inserted in the gift color number 3, negative pole inserted in the green terminal number 3, .

And so on and so forth, the controller system has 32 ports, according to the actual situation, according to the order of the insertion of the required light bar, the extra ports do not need to pay attention to, later can also be added to the light bar.

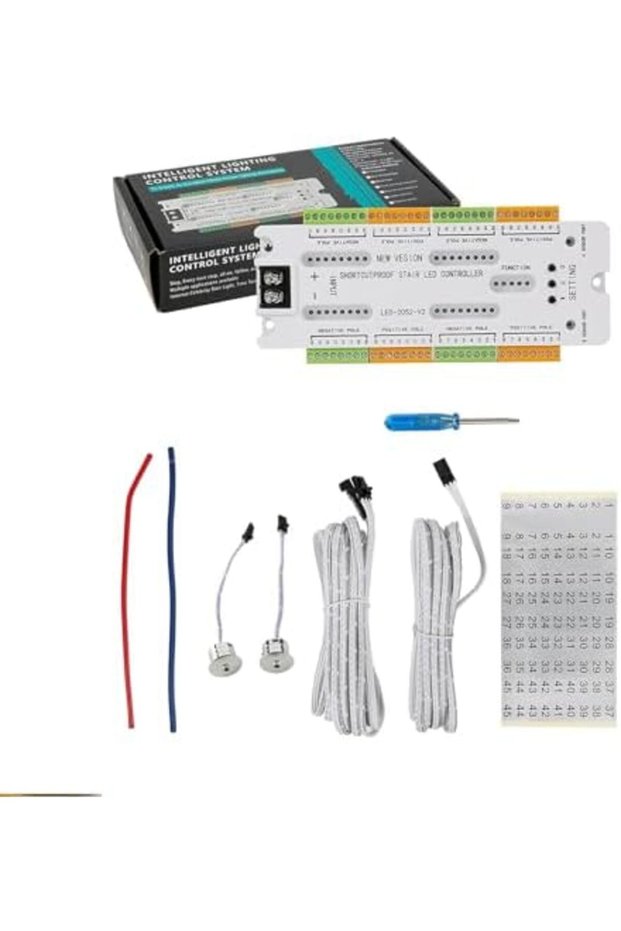

Package List 1 x Serial Number Sticker 1 x Instruction Manual 1 x Main Module 1 x Screwdriver 1 x Red Wire 1 x Blue Wire 2 x Sensor Head 2 x Wire Bundle Specification Item Type: Motion Sensor LED Stair Light Controller Material: ABS Weight: Approx.

330g/11.6oz Motherboard Size: Length: Approx.

18cm/7.1in Width: Approx.

8cm/3.1in Cord Length: Approx.

5m/16.4ft (2 Bundles) Ports: 32 Groups Sensing Port: A B
