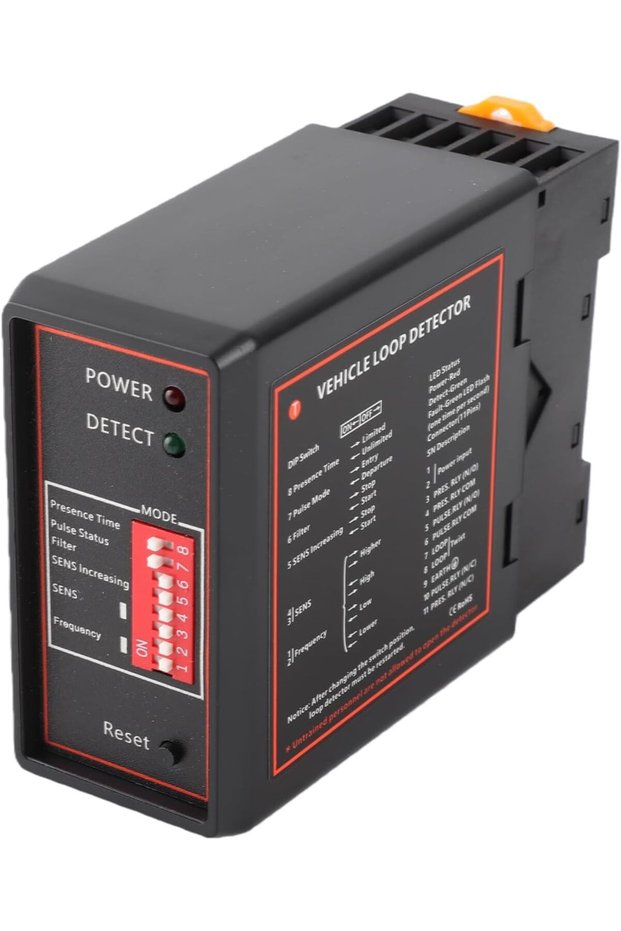

Generic Vehicle Loop Detector, PD132 Single Channel Inductive Vehicle Loop Sensor with Selectable Pulse Time

Product description

Specifications:Condition: Brand NewMaterial: ABSColor: Black time: 10 msSupply voltage: 220 VPower consumption: 4.5 VAOutput relay: 240 V/ 5 AVoltage tolerance DC: ±15%Withstand voltage AC: + 10%/ -15%Operating temperature: -20°C to +65°CStorage temperature: -40°C to +85°CFrequency range: 20 kHz to 170 kHzSensitivity: adjustable in 4 increments hold time: unlimited /limit cycle for 10 minutes permanentlyLoop inductance: The total loop plus connection line is 50μH to 1000μH (ideally 100μH to 300μH).

Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter.

Package List:1* Barrier Opener1* Connection Terminal1* Instruction ManualNote:1.The detector must be installed in a convenient weatherproof position as close as possible to the loop.2.The installation location must be chosen away from the heat source.3.Other equipment around it must be at least 10 mm away (not to be tightly mounted to the wall).4.Proper loop configuration and detector installation will ensure a successful inductive loop detection system.5.Several important parameters of the loop include: cycle diagram, size, turn, and installation method.6. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
