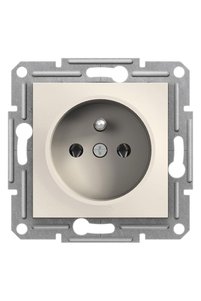

Schneider Eph2870123 Asfora Krem Ups Socket Frameless

Product description

Range Asfora Product or component type Socket outlet standard description Center Pin Earthing (UPS Socket) outlet poles configuration 2P + E device presentation Mechanism with fixing frame tint Cream packaging type Horizontal packaging Number of complementary sockets 1 device mounting Flush-mounted power range 3680 W nominal current 16 A at 250 V AC connections - terminals Lift terminals number of cables 2 cable(s) 2.5 mm² cable stiffness Flexible Rigid Fixed core wire stripping length 13.0 mm material ABS + PC: center plate surface external view Polished conductive material Copper fixing mode Screws or clamps51...69 mm height 71 mm width 71 mm depth 71 mm depth 42 mm protrusion depth 10 mm quantity per set 1 Product weight 0.069 kg Environment Standards IEC 60884-1 Product certifications SEP-BBJTSE IP degree of protection IP20 Packaging units Unit package type 1 PCE Number of units in package 1 Package weight (Lbs) 69 g Package 1 Height 7.1 cm Package 1 width 7,1 cm Package 1 Length 4.2 cm Unit package type 2 CAR Number of units in package 2 10 Package 2 Weight 818 g Package 2 Height 9.1 cm Package 2 Width 18.5 cm Package 2 Length 27.5 cm Unit package type 3 S04 Number of units in package 3 120 Package 3 Weight 10.48 kg Package 3 Height 30 cm Package 3 Width 40 cm Package 3 Length 60 cm

Additional info

• The selling price on Trendyol already includes the export-related costs.
• Sold by
  ACTİV ELEKTRİK
  .
• Made in Türkiye
• A maximum of 10 units of this product can be ordered. Trendyol reserves the right to cancel orders over 10 units.
• Barcode No: TYBAZDOPXVWA8KEB83
• Origin: TR
